Product Description

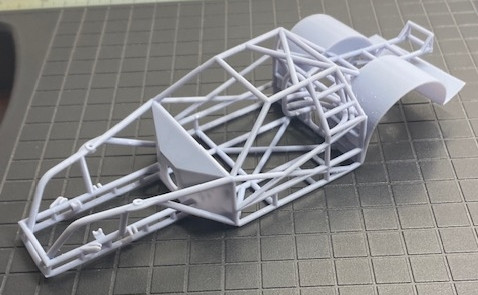

A complete one-piece 3D-resin-printed chassis.
This was designed to a '70.5 Pro Mod Camaro, but the body is no longer being made.
This particular chassis has a long nose, forward sloping roof, firewall and wheel tubbs with an extended lower platform.
It may fit your needs too (see dimensions below). Email me with the body you intend to use to obtain measurements for a sure-fit.
Made of ABS-like resin so easy modifications can be made by cutting, sanding and use of CA glue.
Due to the 3D printing process, the undersides of the tubbs and rear extension need minor sanding and will most likely be covered with carbon fiber decals anyway.
I designed it to utilize many of Futurattraction's suspension and other items (see list of links below). It will save you a ton of time without having to scratch build your own means of mounting the front/rear suspension and more.
Main structural members are .090" diameter while minor members are .080" diameter.
FEATURES:
- Body is designed to sit on the chassis for easy removal for cockpit and engine display (body not included, nor means of attaching body)
- Front strut upper and lower mounting eyelets, for the strut/coil over spindle and lower control-arms.
- Rear 4-link brackets are molded to the chassis
- Rear engine/transmission plate is molded in with the firewall

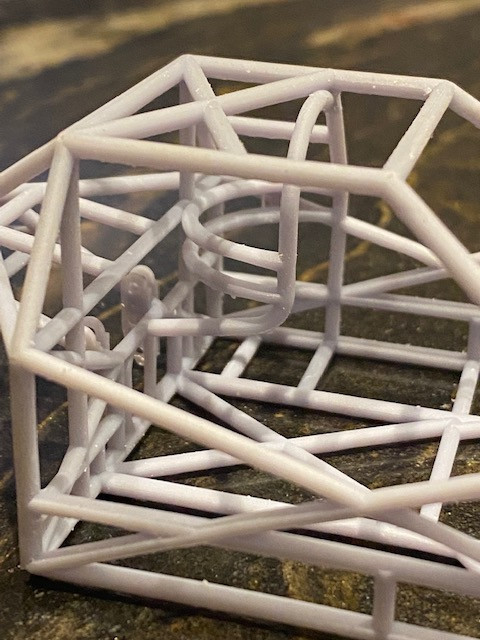

- Detailed driver's cage with wrap-around tubing
- Wheel tubbs and extended platform
DIMENSIONS:
- Wheelbase: 4.50" (rear can move a little fore/aft)
- Width at main bottom rails: 2.37"
- Overall length: 7.2"
- Width at chassis front: 1.00"
- Overall height: 1.65"
- Width at rooftop: 1.43"
- Length at rooftop 1.30"
- Distance from center front wheel to front of chassis:1.32"
- Wheel Tubb diameter: 1.50"
LINKS TO PRODUCTS USED
FUTURATTRACTION PRODUCTS THAT WILL FIT:
Front Motor Plate
Front Strut Kit for 5-Bolt Wheels with TBM Rotors, or with Drilled Rotors or Slotted Rotors.
Front Strut Kit for Spindle-Mounted wheels with Drilled Rotors or Slotted Rotors
Wishbone, A-Arm Supports
Rack & Pinion Set
Coil-Over Shock Kit (rear)
16x33" Drag Slicks (largest that fits) or 14x32" Drag Slicks, if you want more room

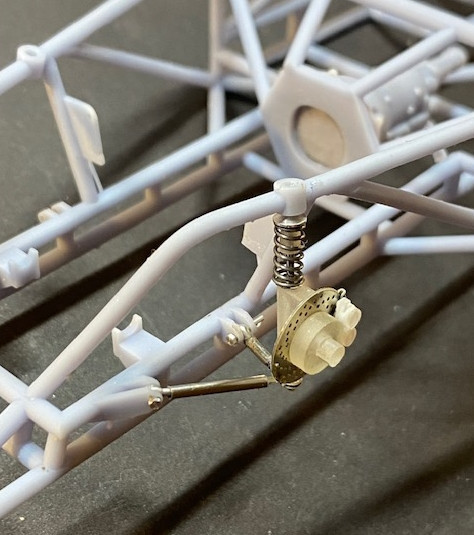

Here's a photo of the chassis with Futurattraction's front strut* and my blown Pro Line Engine.
Chassis is complete and in one-piece, but addition and assembly of suspension, engine, wheels and body are required.
3D-printed resin chassis by Ted's Modeling, 1/25 scale
* Aluminum bolt sets are by RB Motion
